Everything you need to know about LED Video Walls
Learn how pixel pitch, viewing distance, and smart integration shape the perfect LED system for every space.

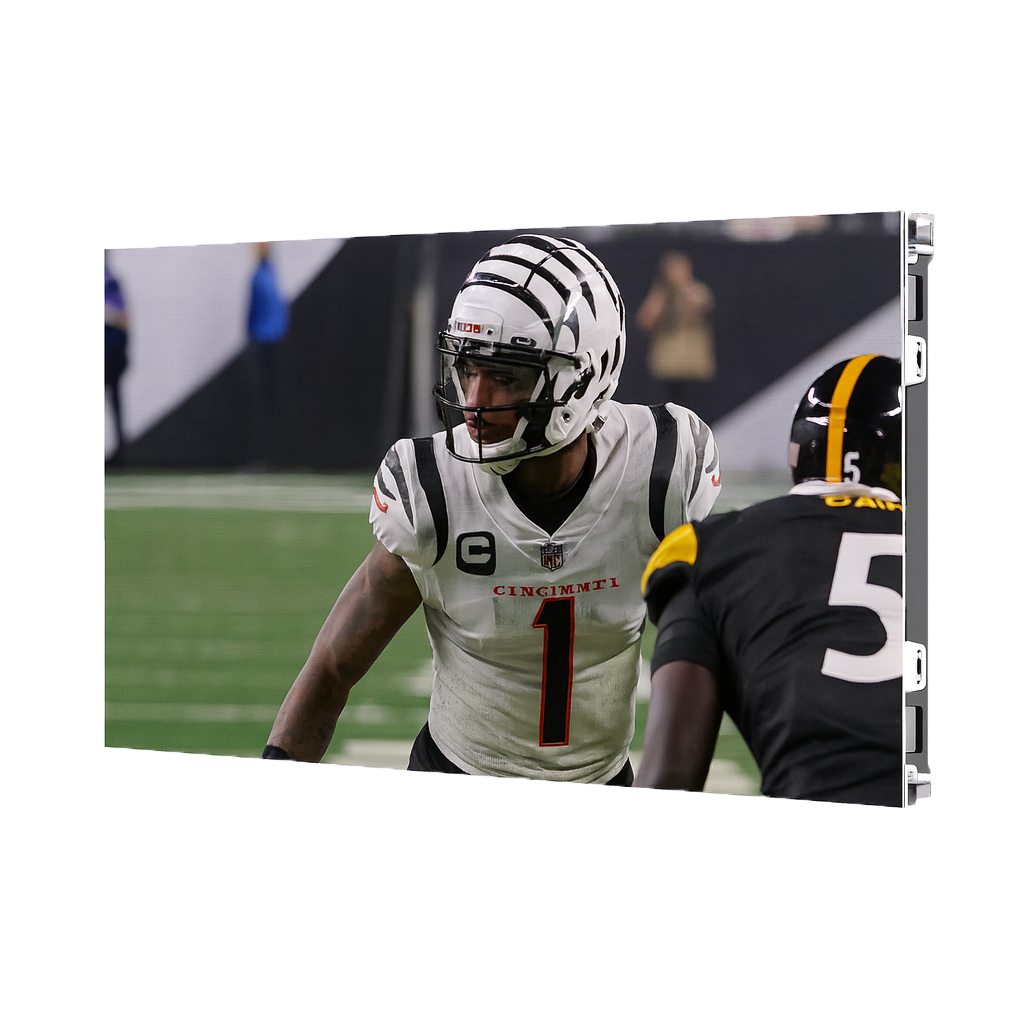

A display made of light

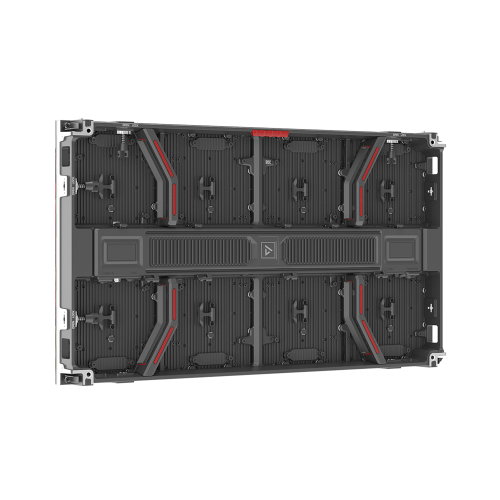

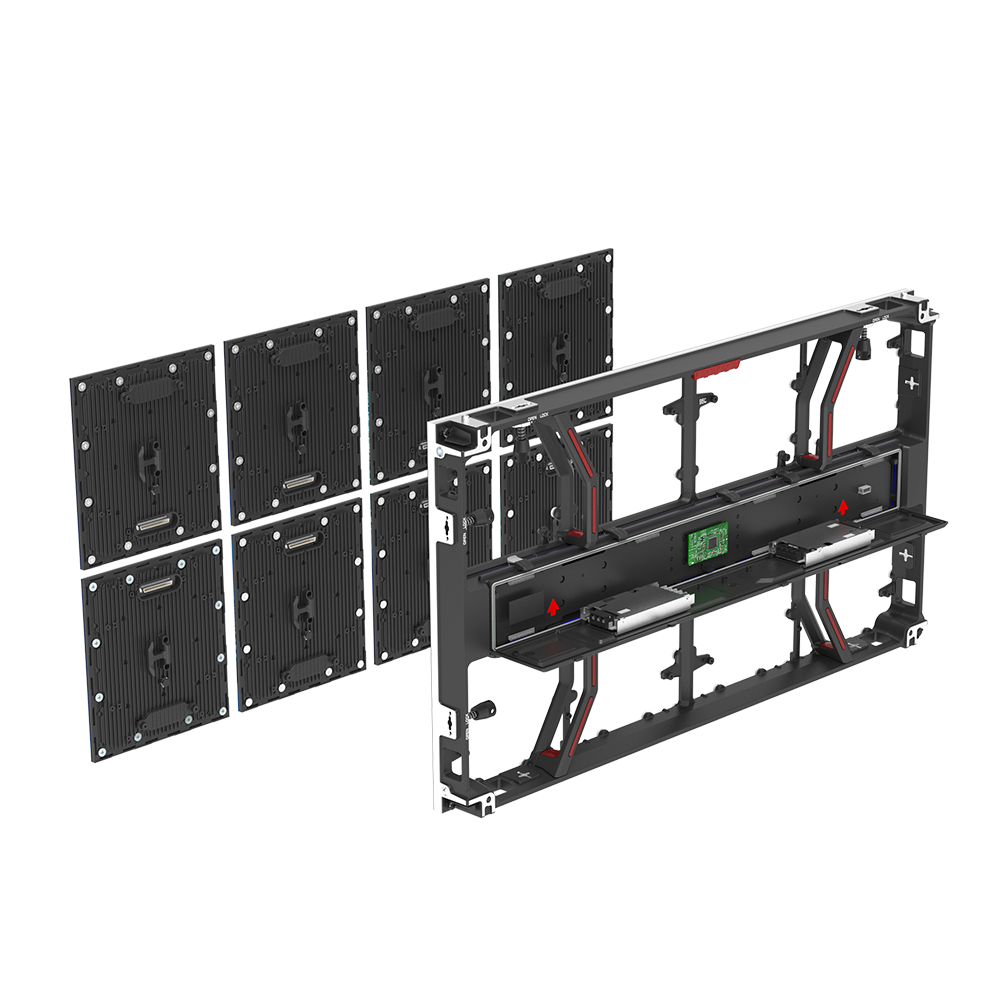

Every LED module connects edge to edge, creating a flawless, borderless canvas of light. Each pixel produces its own brilliance, delivering vivid visuals in any environment, from bright interiors to full daylight outdoors.
Pixel Pitch & Viewing Distance
| Pixel Pitch | Closest Viewing Distance | Ideal Viewing Range* |
|---|---|---|
| 0.9 mm (Micro-LED) | 3.0 ft | 3 – 5 ft |
| 1.2 mm | 4.0 ft | 5 – 7 ft |
| 1.5 mm | 5.0 ft | 6 – 9 ft |
| 2.6 mm | 8.5 ft | 10 – 15 ft |
| 3.9 mm | 13.0 ft | 16 – 22 ft |

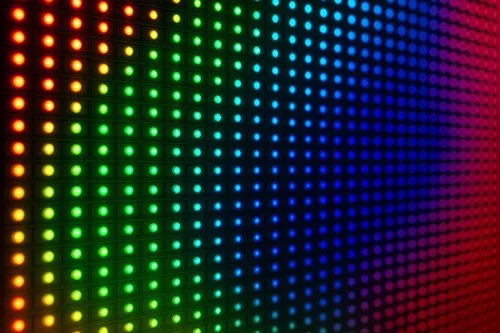

Pixel pitch is the distance between two pixels on an LED panel and determines how crisp the image appears from different viewing distances. Smaller pitches look flawless up close. Larger pitches are optimized for expansive spaces with longer viewing distances.
Cinematic precision, HDR depth & modern design
Crafted for luxury interiors with controlled brightness (≈800–1,500 nits) and lifelike color reproduction.
- Calibrated for cinematic color accuracy and HDR contrast
- Designed for comfortable, glare-free viewing
- Sleek architectural integration complements modern interiors
- Perfect for private theaters, art walls, and luxury living spaces
Sunlight brilliance, weatherproof design & resort impact
Built for daylight performance (≈3,000–5,000 + nits) with IP65–IP67 protection for all-season entertainment.
- Full-daylight visibility for poolside, patio, or rooftop experiences
- IP65–IP67 weather sealing for year-round reliability
- Custom mounting for façades, courtyards, and terraces
- Delivers resort-style visuals with cinematic clarity outdoors
Indoor vs. Outdoor LED

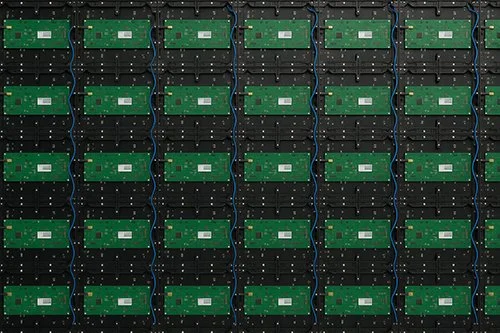

Behind Every Image, A Seamless System
Each Palace system combines LED panels, a video processor, synchronized audio, and has the option for full smart-home integration. Control everything through your Crestron, Savant, Control4 system, or directly from your favorite streaming source.
Sources
4K HDR via HDMI 2.0/2.1
Video Processor / LED Controller
Scale • Sync • HDR tone-map • EDID • Genlock
LED Video Wall
Micro-LED / Fine-Pitch SMD • 16:9 • HDR
Indoor or Outdoor (IP-rated, high brightness)
Audio System
Soundbar / AVR / Dolby Atmos
Smart Home Control
One-touch scenes & automation
Unlock First Access to the Future of Entertainment
Elite audio and visual experiences once reserved for the world’s biggest stages are now available for your home or business.
